VMware Aria Operations for Logs (SaaS) | ESXi Host syslog setting

How to Automate the ESXi Host “Syslog.global.logHost” setting, when using Cloud Proxies.

This blog post is part of a series of blog posts that will be created to help you “Unlock the Potential” of the VMware Aria Products. I want to give you some “Real World” examples that VMware admins could use everyday to help them with their daily tasks. Hopefully you will learn from my Tips and Tricks.

VMware Aria Operations for Logs | SaaS Version:

The Details in this Blog Post were created in October 2023. New VMware Aria Operations for Logs updates are released every month, so the details shown in this Blog Post could change.

When you use VMware Aria Operations for Logs | SaaS Version, you need to have one or more Cloud Proxies to send the log info from your on-prem vCenter and ESXi Hosts to VMware Cloud Services. If you have more than (1) Cloud Proxy, there is no automated way built into VMware Aria Operations for Logs to distribute the Cloud Proxy usage. One way to set the vCenter ESXi hosts to use a specific Cloud Proxy, is to use a PowerCLI script. I included some sample scripts in this blog post to help you get started.

Logic of the PowerCLI script:

The script will count the number of VMware Cloud Services, Cloud Proxies Specified
The script will count the number of VMware vCenter ESXi Hosts in the vCenter Specified
The script will equally distribute the number of vCenter ESXi Hosts per Cloud Proxy
The script will set the Advanced System Setting “Syslog.global.logHost” on each ESXi Host

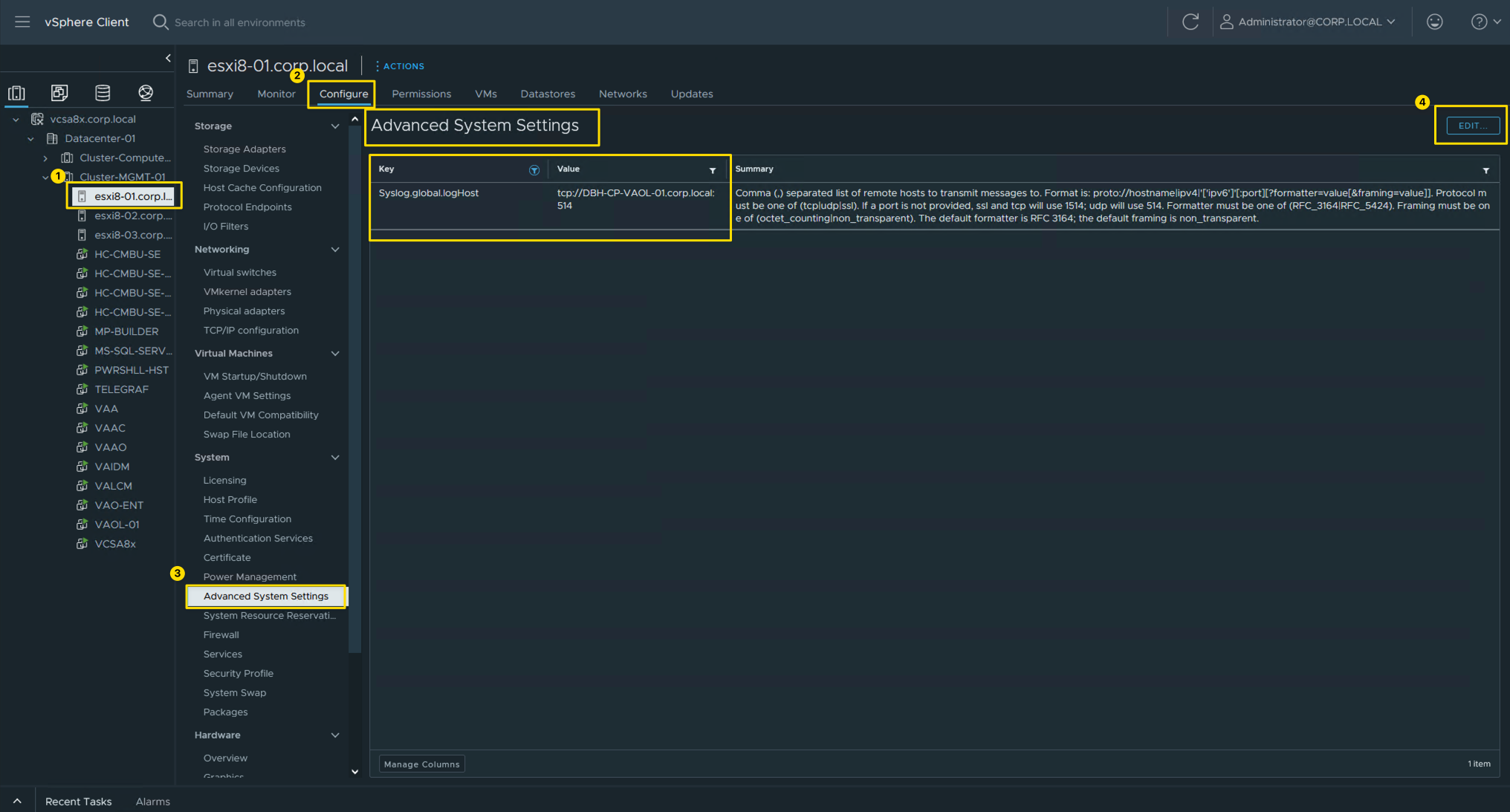

ESXi Host Advanced System Settings:

This is how to manually set the “Syslog.global.logHost” on each ESXi Host

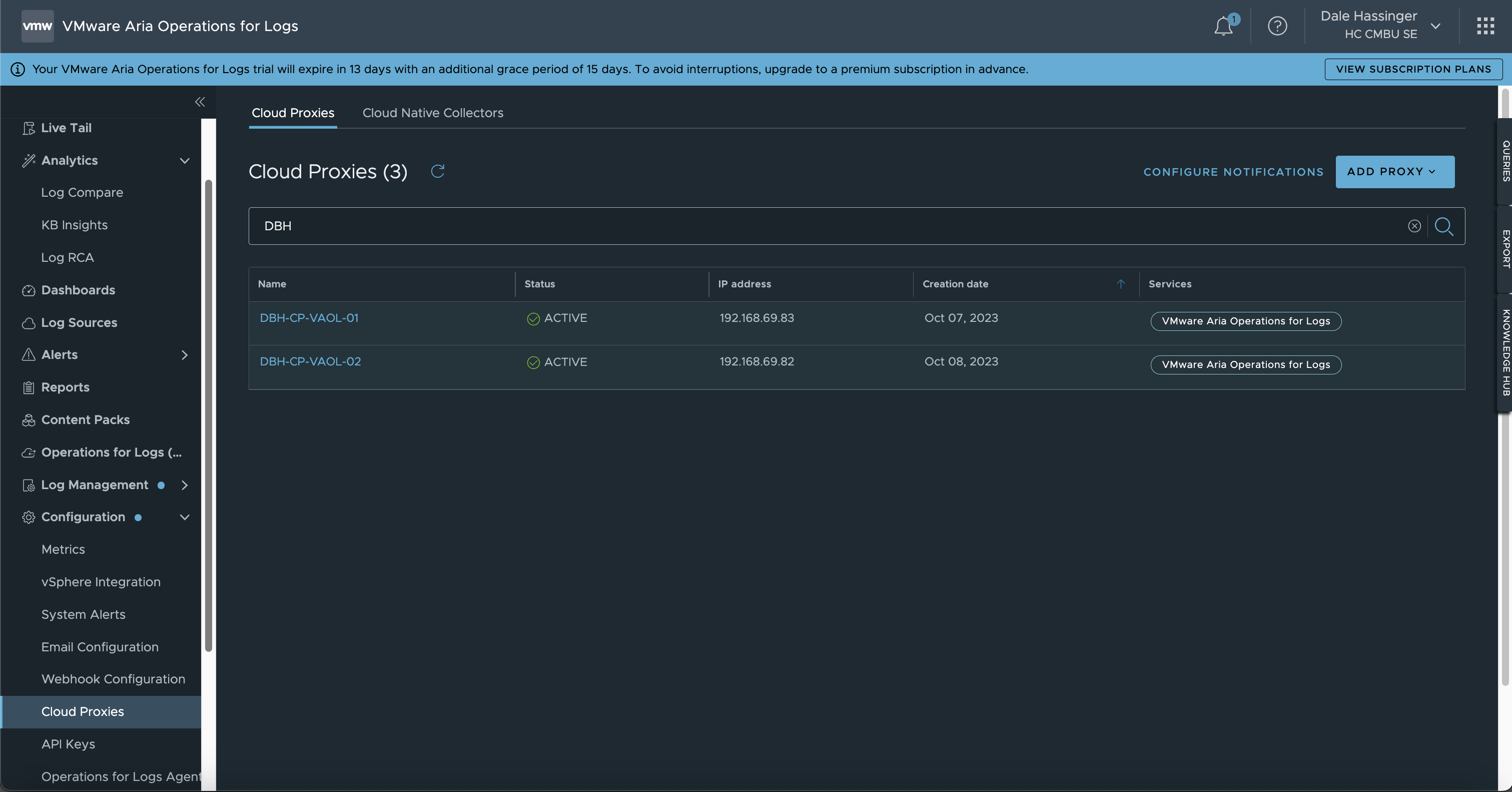

Cloud Proxies:

Go to Configuration/Cloud Proxies to see all the Proxies added

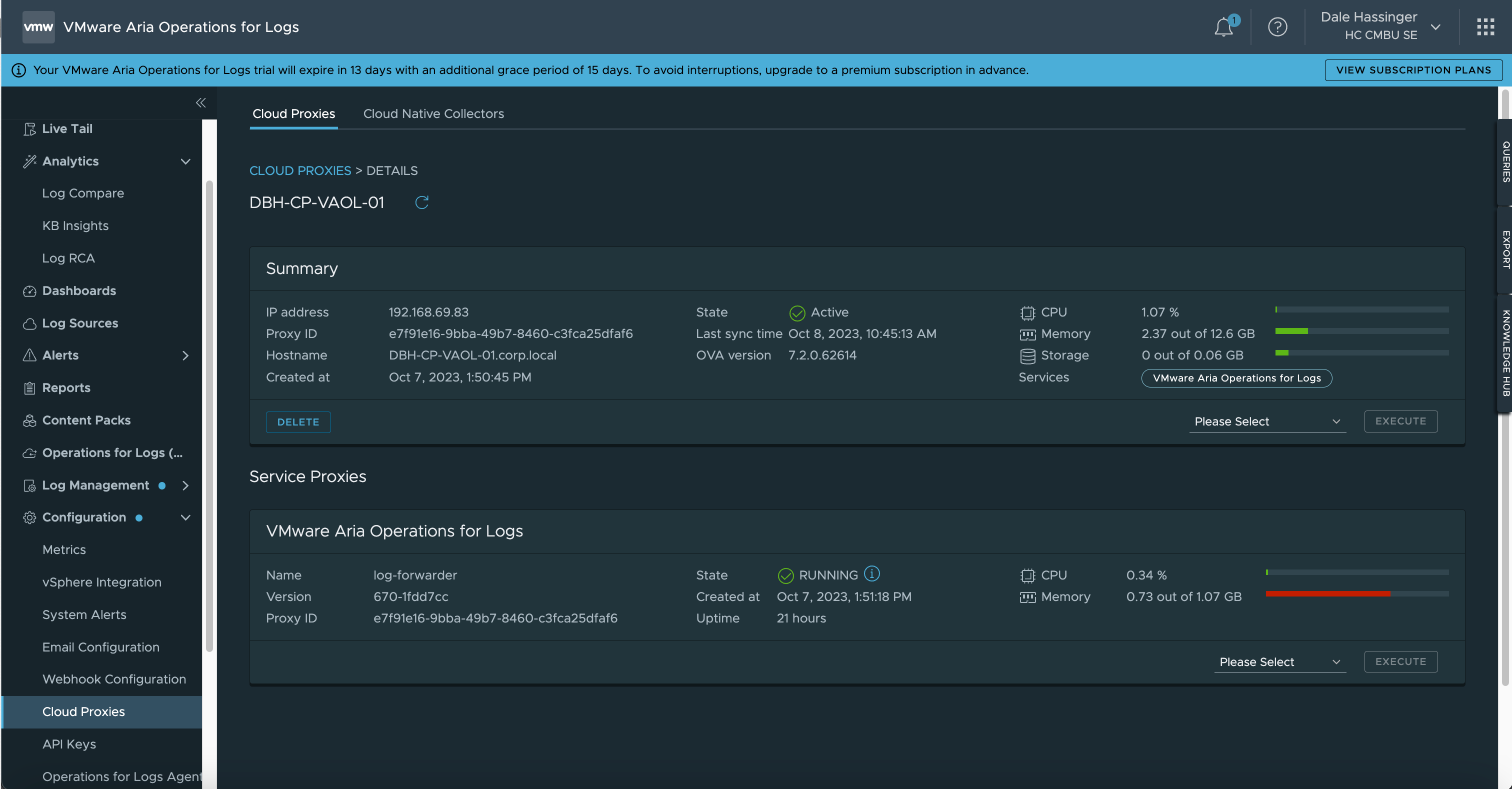

Cloud Proxy Information:

Cloud Proxy Details like State, CPU, Memory

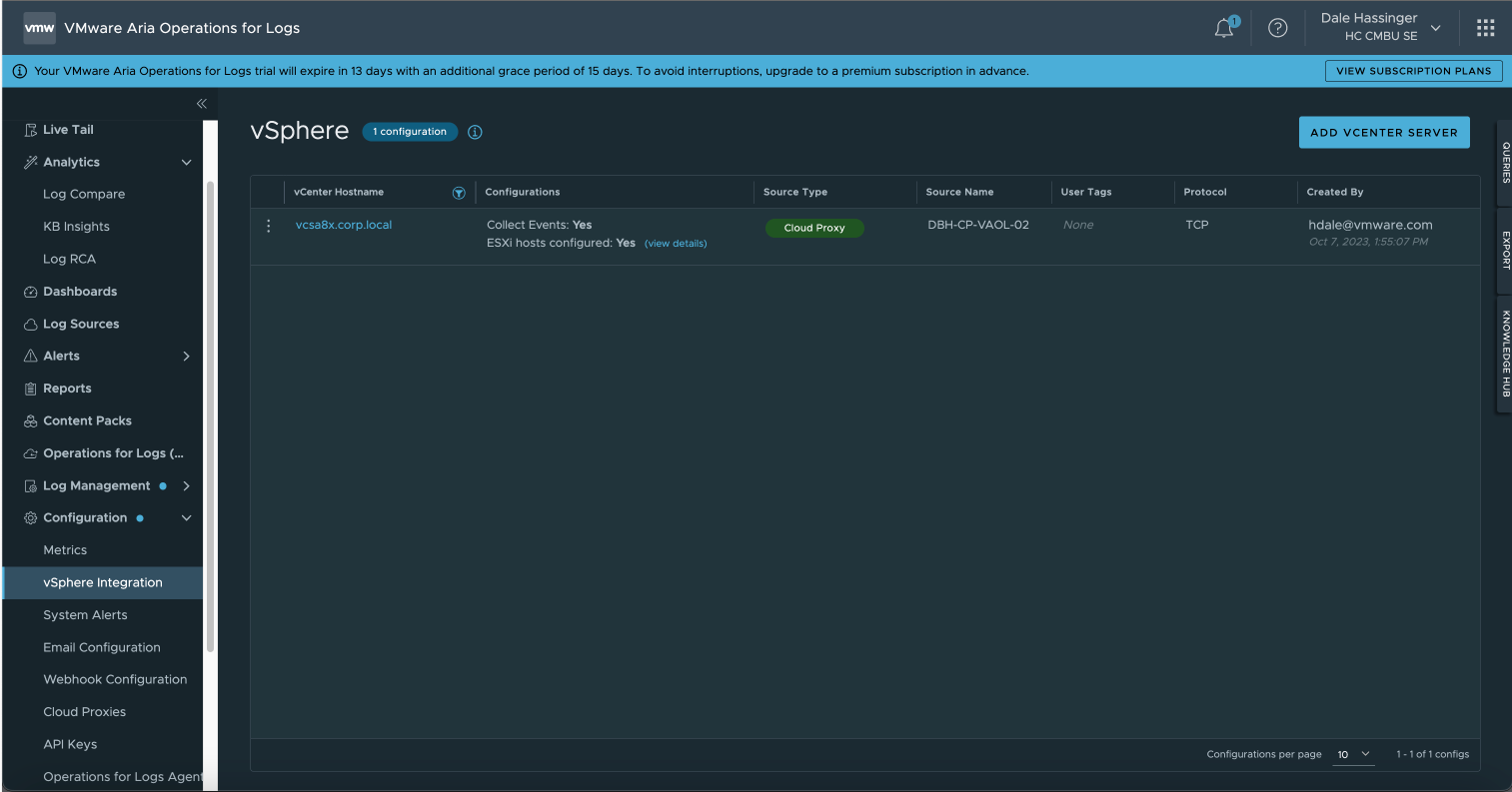

vSphere Integration:

Go to Configuration/vSphere Integration to see all the vCenters added

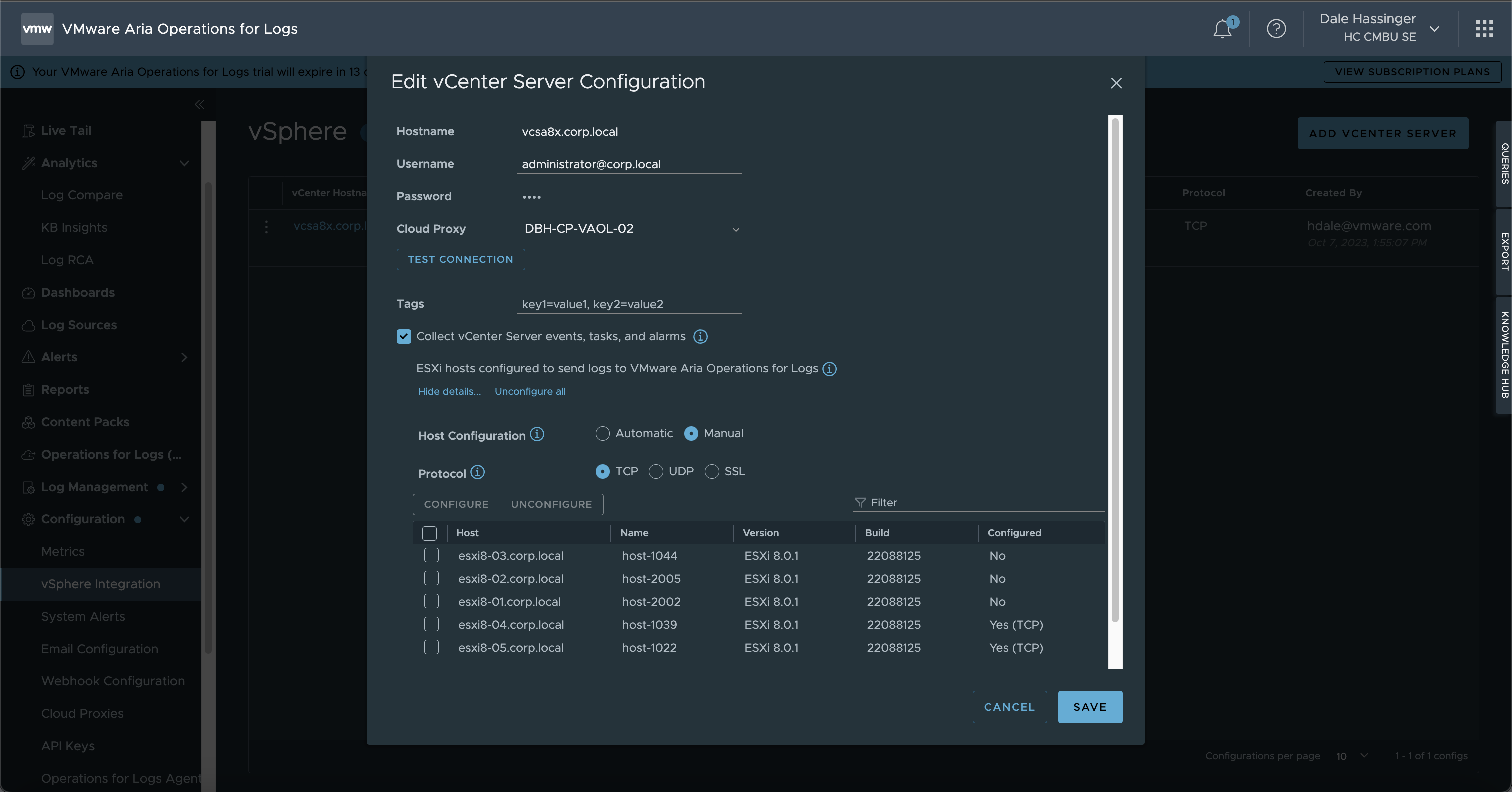

vCenter Server Configuration:

vCenter Server Configuration
You can use this screen to set which Cloud Proxy to use but if you have 100s or 1000s of Hosts, I find it easier to use the script included in this Blog Post.

PowerShell Code:

Set “Syslog.global.logHost” value on all Hosts

Sample Script to set the “Syslog.global.logHost” value on each ESXi Host
The script will balance the usage of the Cloud Proxies
The script could be scheduled to run every day to maintain the correct settings.

Code:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132




# ----- Set Variable Values to use with Script
$vcServer     = "vcsa8x.corp.local"
$vcUser       = "administrator@corp.local"
$vcPassword   = "VMware1!"

# ----- This example uses (1) syslog setting for each host.
#$syslogServers = "udp://vaol-vip.corp.local:514"

# ----- This example uses (2) syslog settings for each host.
#$syslogServers = "udp://vaol-vip.corp.local:514,tcp://DBH-CP-VAOL-01.corp.local:514"

# ----- This example uses (2) syslog settings divided equally between hosts.
#$syslogServers = "udp://vaol-vip.corp.local:514;udp://vaol-01.corp.local:514"

# ----- This example uses (3) syslog settings divided equally between hosts.
$syslogServers = "udp://vaol-vip-03.corp.local:514;udp://vaol-vip-02.corp.local:514;udp://vaol-vip-01.corp.local:514"

# ----- This example uses (4) syslog settings divided equally between hosts.
#$syslogServers = "udp://vaol-vip-01.corp.local:514;udp://vaol-vip-02.corp.local:514;udp://vaol-vip-03.corp.local:514;udp://vaol-vip-04.corp.local:514"


# ----- Get list of syslog server specifed and seperated by semicolons. Semicolons were used in case you would want to specify (2) syslog servers seperated by commas.
$syslogServerList = $syslogServers.Split(";")
$syslogServerList = $syslogServerList | Sort-Object

$output = "syslog Server List: " + $syslogServerList
Write-Output $output

[int]$syslogServerCount = $syslogServerList.Count

$output = "syslog Server Count: " + $syslogServerCount
Write-Output $output


# ----- Connect to the vCenter Server or ESXi host
Connect-VIServer -Server $vcServer -User $vcUser -Password $vcPassword -Protocol https -Force

if($syslogServerCount -gt 1){

    # ----- Get Number of Hosts
    $hostList = Get-VMHost | Select-Object Name | Sort-Object Name
    #$hostList

    [int]$hostCount = $hostList.Count
    # ----- Total Number of Hosts
    $output = "Host Count: " + $hostCount
    Write-Output $output

    # ----- Calculate how to divide the hosts
    $baseValue = [math]::Floor($hostCount / $syslogServerCount)
    $remainder = $hostCount % $syslogServerCount

    # ----- Create an array to hold the results
    $syslogProxyNumber = @(1..$syslogServerCount | ForEach-Object { $baseValue })
    #$syslogProxyNumber

    # ----- Distribute the remainder among the numbers
    for ($i = 0; $i -lt $syslogServerCount; $i++) {
        if ($remainder -eq 0) { break }
        $syslogProxyNumber[$i]++
        $remainder--
    }
    $output = "Hosts Per Syslog Group: " + $syslogProxyNumber
    Write-Output $output


    $output = "Highest sysloggroup array value: " + ($syslogProxyNumber.Count - 1)
    Write-Output $output

    $output = "Syslog Group Count: " + $syslogProxyNumber.Count
    Write-Output $output

    # ----- Calculate the sum
    [int]$sum = ($syslogProxyNumber | Measure-Object -Sum).Sum
    $output = "Total Hosts to add syslog info: " + $sum
    Write-Output $output


    if($sum -eq $hostCount){
        Write-Output "Hosts were divided as equal as posible"
    }
    else{
        Write-Output "Hosts were NOT divided equal. TRY AGAIN!"
    }
} # End If
else{
    Write-Output "Only 1 syslog Server was specififed!"
} # end else

$syslogProxyNumberArrayValue = 0
$servercountstart = 1
$serverCountTotal = $syslogProxyNumber[$syslogProxyNumberArrayValue]

# Loop thru ESXi Hosts
foreach($esxiName in $hostList){
    # ----- Create Server Count Number
    $servercountstartstr = '0000' + $servercountstart
    $servercountstartstr = $servercountstartstr[-4..-1] -join ''

    # ----- Set the syslog Host value on Each ESXi Host
    if($syslogServerCount -gt 1){
        $output = "Server Count: " + $servercountstartstr + " | ESXi Server Name: " + $esxiName.Name + " | Proxy Name: " + $syslogServerList[$syslogProxyNumberArrayValue]
        Write-Output $output

        # ----- Set the Syslog.global.logHost value
        $output = "------------- Get-VMHost " + $esxiName.Name + " | Get-AdvancedSetting -Name 'Syslog.Global.Loghost' | Set-AdvancedSetting -Value " + $syslogServerList[$syslogProxyNumberArrayValue] + " -Confirm:$false"
        Write-Output $output
        # ----- The next line will make the changes. Remove the line comment after you test the script and make sure you are getting the results you want to use.
        #Get-VMHost $esxiName.Name | Get-AdvancedSetting -Name 'Syslog.Global.Loghost' | Set-AdvancedSetting -Value $syslogServerList[$syslogProxyNumberArrayValue] -Confirm:$false

    } # End If
    elseif($syslogServerCount -eq 1){
        $output = "Server Count: " + $servercountstartstr + " | ESXi Server Name: " + $esxiName.Name + " | Proxy Name: " + $syslogServerList
        Write-Output $output
        # ----- The next line will make the changes. Remove the line comment after you test the script and make sure you are getting the results you want to use.
        #Get-VMHost $esxiName.Name | Get-AdvancedSetting -Name 'Syslog.Global.Loghost' | Set-AdvancedSetting -Value $syslogServerList -Confirm:$false
    } # End Elseif

    # ----- Increment Host Count and switch which Proxy to use based on count
    $servercountstart++
    if($servercountstart -gt $serverCountTotal -and $syslogServerCount -gt 1){
        $servercountstart = 1
        $syslogProxyNumberArrayValue++
        $serverCountTotal = $syslogProxyNumber[$syslogProxyNumberArrayValue]
    } # End If
} # End foreach


# ----- Disconnect from the vCenter Server or ESXi host
Disconnect-VIServer -Server $vcServer -Confirm:$false

Get current “Syslog.global.logHost” value on all Hosts

Here is a sample script that can be used to show the current “Syslog.global.logHost” values

Code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41




# ----- [ Get current sysloghost value on all Hosts ] -----

# ----- Set Variable Values to use with Script
$vcServer     = "vcsa8x.corp.local"
$vcUser       = "administrator@corp.local"
$vcPassword   = "VMware1!"

# ----- File Name to store data
$filePath = "C:\Github\PS-TAM-Lab\syslog-current-info.csv"

# ----- Connect to the vCenter Server or ESXi host
Connect-VIServer -Server $vcServer -User $vcUser -Password $vcPassword -Protocol https -Force

# ----- Get list of all Hosts
$hostList = Get-VMHost | Select-Object Name | Sort-Object Name

# ----- Create new CSV file
New-Item -Path $filePath -ItemType File -Force

# ----- add header to CSV file
Add-Content -Path $filePath -Value "ServerName,syslogName"

# ----- Get all ESXi Hosts
$hostList = Get-VMHost | Select-Object Name | Sort-Object Name

# ----- Output Data to screen and the CSV file
foreach($hostName in $hostList){
    $syslogInfo = Get-VMHost -Name $hostName.Name | Get-AdvancedSetting -Name "Syslog.global.logHost"

    $output = "Server Name: " + $syslogInfo.Entity.Name + " | syslog Name: " + $syslogInfo.Value
    Write-Output $output

    # ----- add info to csv file
    $addContentstr = $syslogInfo.Entity.Name + "," + $syslogInfo.Value
    Add-Content -Path $filePath -Value $addContentstr
} # End foreach

# ----- Disconnect from the vCenter Server or ESXi host
Disconnect-VIServer -Server $vcServer -Confirm:$false

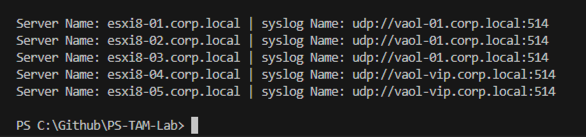

Sample Output from script:

Set “Syslog.global.logHost” value to null on all Hosts

Sample script if you would ever want to set the “Syslog.global.logHost” values to null on all the ESXi Hosts.

Code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28


# ----- [ Set sysloghost value to null on all Hosts ] -----

# ----- Set Variable Values to use with Script
$vcServer     = "vcsa8x.corp.local"
$vcUser       = "administrator@corp.local"
$vcPassword   = "VMware1!"

# ----- Connect to the vCenter Server or ESXi host
Connect-VIServer -Server $vcServer -User $vcUser -Password $vcPassword -Protocol https -Force

# ----- Get list of all Hosts
$hostList = Get-VMHost | Select-Object Name | Sort-Object Name

# ----- Get all ESXi Hosts
$hostList = Get-VMHost | Select-Object Name | Sort-Object Name

# ----- Output Data to screen and a CSV file.
foreach($hostName in $hostList){
    $output = "Server Name: " + $hostName.Name + " | syslog Name: Set to null"
    Write-Output $output

    # ----- Set logserver address to null
    Set-VMHostSysLogServer -SysLogServer $null -VMHost $hostName.Name

} # End foreach

# ----- Disconnect from the vCenter Server or ESXi host
Disconnect-VIServer -Server $vcServer -Confirm:$false

Get “Syslog.global.logHost” address on a specific Host

Very simple script to get the “Syslog.global.logHost” values on a single ESXi host.

Code:

1
2


# ----- Simple Get syslogserver address on a specific Host
Get-VMHostSysLogServer -VMHost 'esxi8-05.corp.local'

Lessons Learned

When you use VMware Aria Operations for Logs | SaaS Version, you may need more than one Cloud Proxy
If you have more than one Cloud Proxy, you will need a way to balance the usage between the Proxies
If you have 10s, 100s or 1000s of ESXi Hosts, using a script will be the easiest and quickest way to specify “Syslog.global.logHost” values.

When I write my blogs, I always say there are many ways to accomplish the same task. This article is just one way that you could accomplish this task. I am showing what I felt was a good way to complete the use case but every organization/environment will be different. There is no right or wrong way to complete the tasks in this article.
